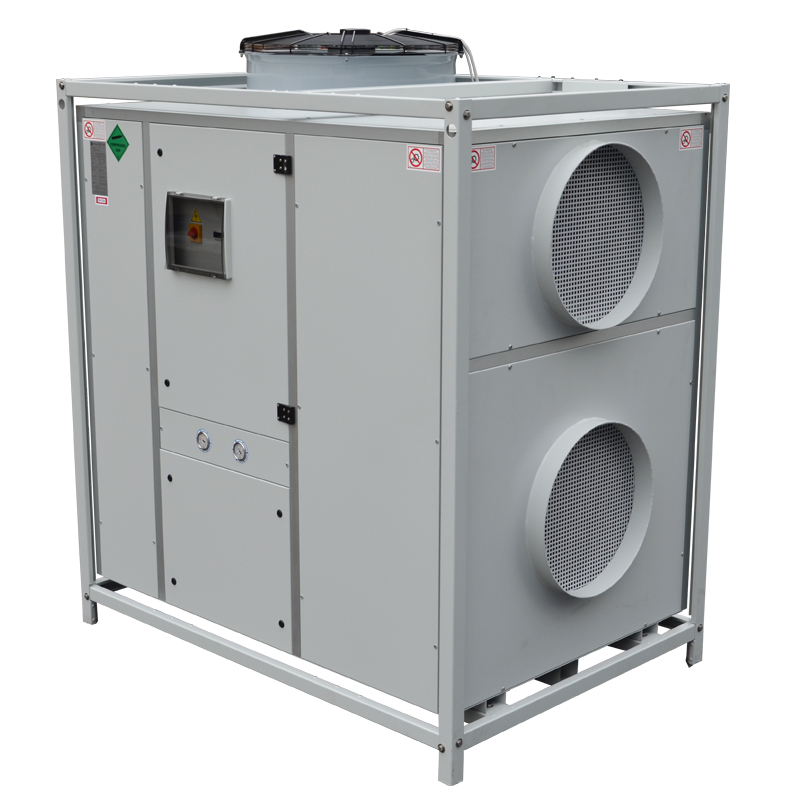

HPAC45 High Performance Air Conditioner

The HPAC45 is a robust, high capacity mobile air conditioning unit providing a nominal cooling and heating capacity of 45kW, via heat pump functionality. As a ’plug and play’ unit, it only requires connection to an available power supply and can be fully operational within minutes – requiring no further intervention or attention. The HPAC45 is ideally suited to large volume spaces such as film sets, marquees, storerooms, data centres as well as heating or cooling event space in temporary structures

Key Features

Feature

Feature

Heat Pump technology

can be used for cooling or heating

Quiet operation

enabling use within build up areas

Automatic thermostat

can change from cooling to heating

IP65 rated electrics

can be used outside

Uses R410A refrigerant

making it eco friendly

Compact unit

can be used in restricted areas

Energy efficient -45kW of cooling and heating from a 40-amp power supply

Air recirculation

increases efficiency by using the returned air rather than outside air

Product Specification

Additional information

Nominal cooling duty

45 kW

Nominal heating duty

44.3 kW

Air flow (max)

7,500 m3 /h

Typical cooled area

1,000 m3

Power supply

415 v 3 ph N+E RUN 40 A

Plug type

BS4343 63 A 5 pin

Noise level (max)

65.4 dBA @ 3 metres

Weight

780 kg

Dimensions (L x W x H)

1,937 x 1,340 x 2,170 mm

Duct length (max)

16 metres

Duct Diameter

600 mm

Control

Automatic thermostat

Average power consumption

12.4 kW/h

Accessories

10M EXT LEAD 5 PIN 63 A 415V / 5 PIN 63A 415V 25MM DIA
20M EXT LEAD 5 PIN 63 A 415V / 5 PIN 63A 415V 25MM DIA
600MM X 8M HEATER DUCTING WITH CLAMP

Environments

Data rooms
Server rooms
Open plan areas
Large workshops
Events
TV and film studios
Hospitality units
Film sets
