Immediate Despatch

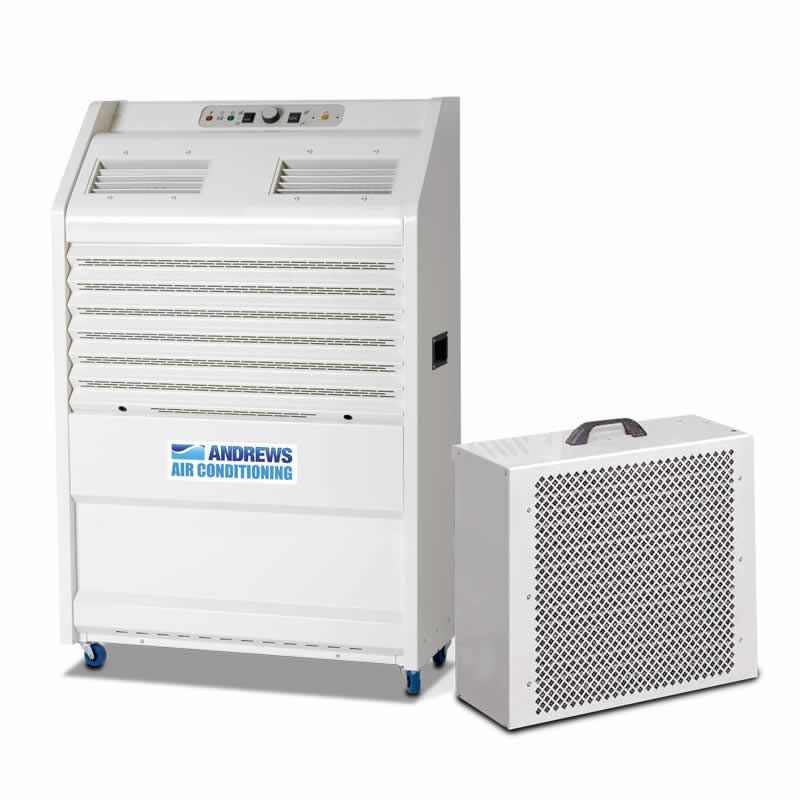

The PAC 22 Series 2 is one of our largest and most powerful split type air conditioners and regularly deployed inside temperature critical applications. This easy to install unit has a cooling capacity of 6.47kW – producing large volumes of cool air for areas of up to 156m3. The room unit and the external unit are connected by a series of five-metre flexible lines containing flow and return cooling water. This is pumped from the room unit to the external heat exchanger, with the two components able to be situated up to 30 metres apart. The unit’s robust design and impressive cooling specifications make it perfect for use in large offices, server rooms and hospitals.
HEPA filter version of this unit are now available, click here to find out more.
Feature
for versatility of location
can be positioned more easily
Can run unattended
full control over desired air flow
will stand up to the rigours of industrial use
for simple and fast installation
down to as low as 10 ̊
| Nominal cooling duty | 6.47 kW |
|---|---|
| Air flow (max) | 990 m3 /h |
| Typical cooled area | 156 m3 |
| Plug type | BS1363 230 V |
| Power supply | 230 V 1 ph 50 Hz Run 11 AAlso available in 230 V 1 ph 60 Hz |
| Indoor noise level (max) | 62 dBA @ 3 metres |
| Outdoor noise level (max) | 62 dBA @ 3 metres |
| Indoor weight | 119 kg |
| Outdoor weight | 20 kg |
| Indoor dimensions (L x W x H) | 850 x 380 x 1,240 mm |
| Outdoor dimensions (L x W x H) | 560 x 280 x 520 mm |
| PAC line length | 5 metres (max 30 metres) |
| Control | Automatic thermostat |
| Average power consumption | 2.4 kW/h |
| Optional cold air duct | 2 x 150mm x 5 metres |
RCD
10M x 230V EXTENSION LEAD 2.5MM DIA
HEX UNIT
5M WATER LINES (MAX 6)
PAC22 S3 DUCT SPIGOT
Offices
Storerooms
Computer rooms
Workshops
Shops
Exhibitions
Marquees
Hotels
Hospitality units
Restaurants
Healthcare
Switchrooms
