Hot Water Calorifiers 1000L

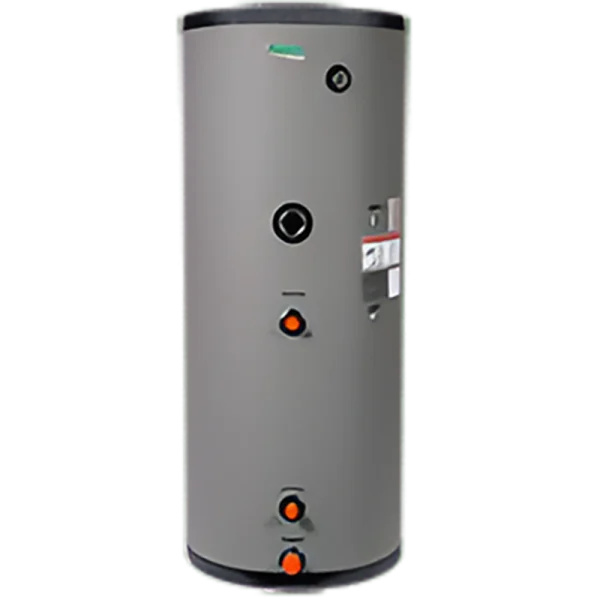

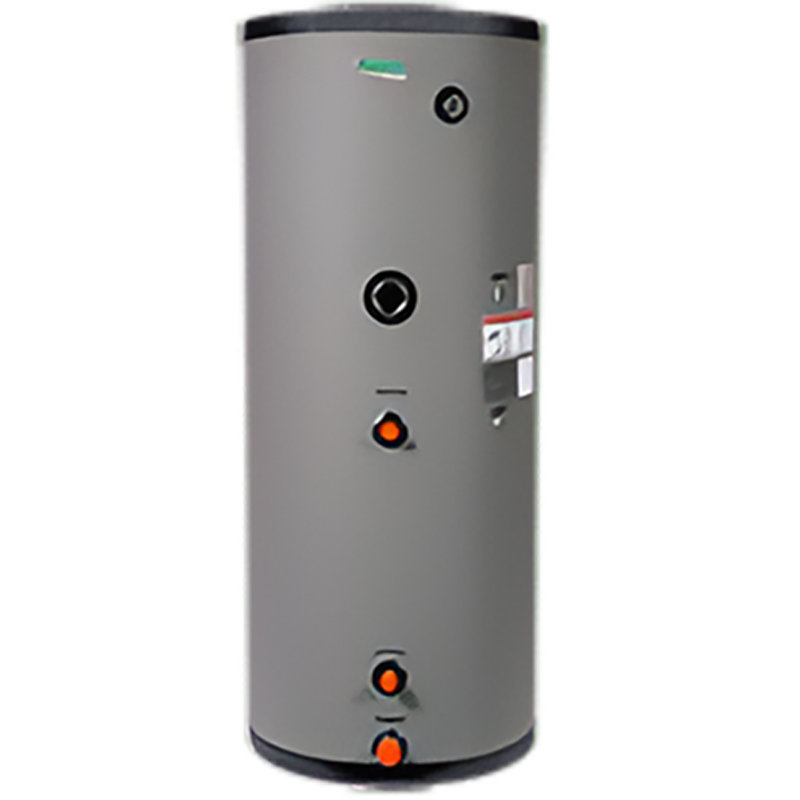

Hot water calorifiers are used to supply a wide range of hot water demands. Installed in conjunction with heating boilers, these products provide an indirect method of generating hot water for various types of buildings. Our 1000l model is suitable for large domestic or small commercial applications and provide a reliable supply of hot water when installed with a suitably sized heating boiler. The 1000l hot water calorifier is constructed from stainless steel and has a single high-capacity stainless steel coil.

Key Features

Feature

Plug and Play

Instant Hot Water

Quick recovery time

1 phase 240V power

Low running current

DHW

Product Specification

Additional information

Heat Transfer	60kW
Primary Design Fluid flow	1 litre/second
Recovery Time	1 hour
Fluid Volume	1000 litre
Pressure (Max)	3 bar Primary. 6 bar secondary
Dimensions	2200 x 1550 x 2500mm
Weight (Dry)	980kg
Electrical Connection	BS4343 16A (1.5A running current)
LPHW Connections	50mm Storz coupling
DHW Connections	50mm Storz coupling
DHW recirculation Connection	25mm Storz Coupling

Downloads

Accessories

10M x 230V 16AMP EXTENSION LEAD 2.5MM DIA
20M x 230V 16AMP EXTENSION LEAD 2.5MM DIA
STORTZ HOSE 50MM LPHW
STORTZ CONNECTOR 50MM ALLOY (LPHW)
