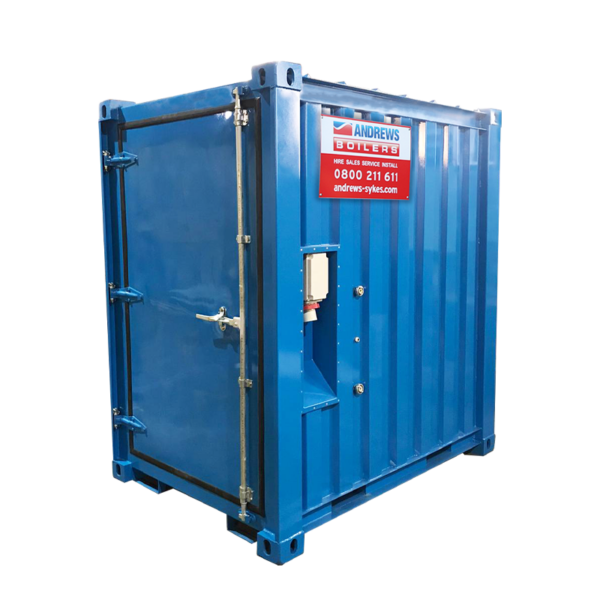

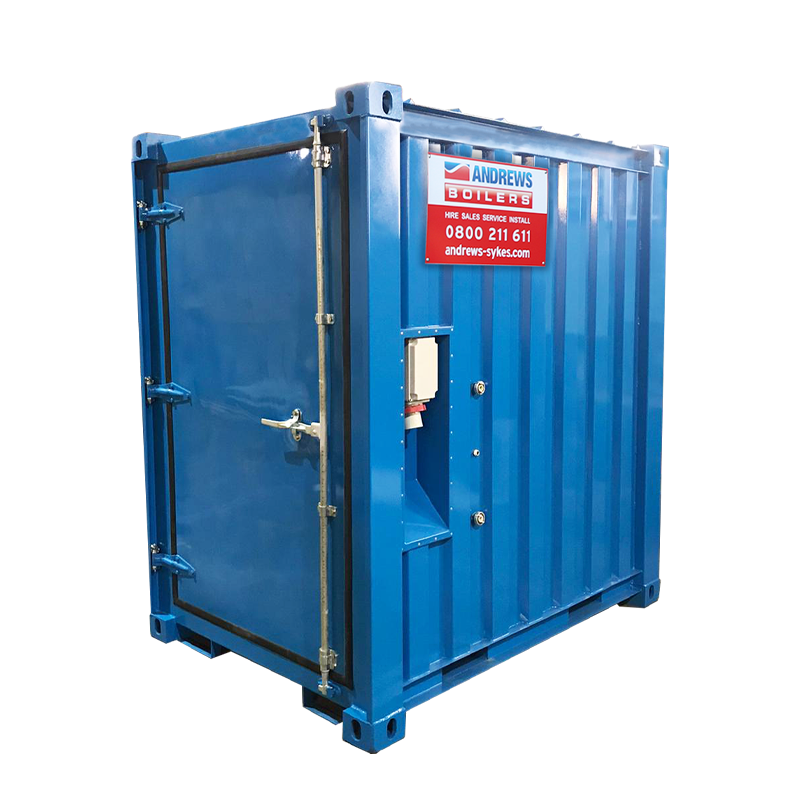

The 80kW electric boiler offers an economical and flexible solution for a range of heating and hot water applications. With associated running costs significantly lower than an oil-driven equivalent, this product also features a powerful circulating pump that allows it to be deployed outside the environment in which it is being used. As an environmentally friendly unit that relies solely on an electricity supply to operate, customers need not be concerned about CO2 emissions or the boilerโs impact on their carbon footprint. Quiet functionality and quicker installation times enhance the unitโs overall convenience, with a controllable thermostat ensuring gradual temperature rises can be achieved whenever required.
Feature
conomical boilers on the market
due to powerful circulating pump
organise fuel replenishment
CO2 emissions
maintenance times
for unobtrusive use
control for critical applications
and de-installation
| Nominal heating duty | 80kW |
|---|---|
| Power supply | 415V 3ph N+E Run 117A |
| Plug type | EN60309-1 5 pin 125A |
| Noise level | 30dBA @ 10 metres / 42 LWA @ 10 metres |
| Weight | 1,030kg |
| Dimensions (L x W x H) | 2,200 x 1,570 x 2,420 mm |
| Fuel type | Electric |
| Average power consumption | 48.5 kW/h |
| Water connections | 1" BSP stortz coupling |
| Temperature range | 25-90โฐC |
20M x 5 PIN 125 AMP 415V EXTENSION LEAD 35MM DIA
10M x 5 PIN 125 AMP 415V EXTENSION LEAD 35MM DIA
STORTZ HOSE 25MM LPHW
STORTZ CONNECTOR 25MM ALLOY (LPHW)
HEAT EXCHANGER
BUFFER TANK
FAN COIL / AHU
