Immediate Despatch

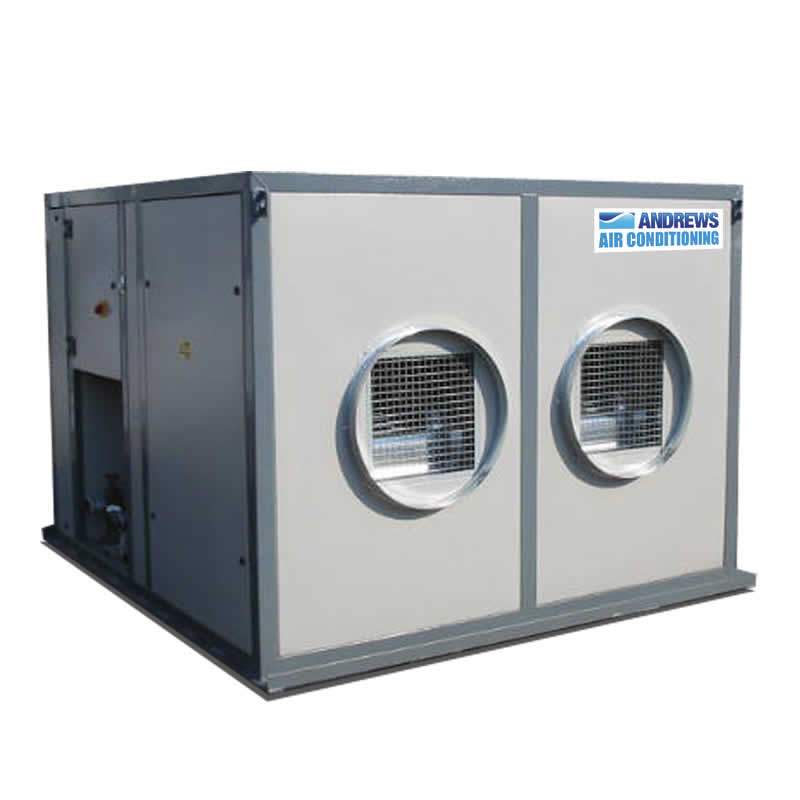

150 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units have internal condensate pumps.
Feature
| Nominal cooling duty | 150 kW |
|---|---|
| Nominal heating duty | 300 kW |
| Air flow (max) | 20160 m3/h |
| Power supply | 415 V 3 ph 50 Hz N+E Run 20 A |
| Plug type | BS4343 5 pin 32 A |
| Noise level (max) | 84 dBA @ 1 metre |
| Weight | 934 kg |
| Dimensions (L x W x H) | 2260 x 1980 x 1700 mm |
| Duct length (max) | 48 metres |
| Duct size | 2 x 600 mm |
| Average power consumption | 14.3 kW/h |
| Integral condensate pump | Yes |
| Fan speed controller | No |
| Water connection | 50 mm / 2" bauer |
10M EXTENSION LEAD 5 PIN 32 AMP 415V 6MM DIA
CONDENSATE HOSE
600MM X 8M HD VENT DUCTING WITH CLAMP
6M X 50MM HOSE WITH BAUER CONNECTIONS
Food preparation areas
Shops
Cold storage facilities
Marquees
Offices
Events and Exhibitions
Computer rooms
Archives
Temporary accommodation
