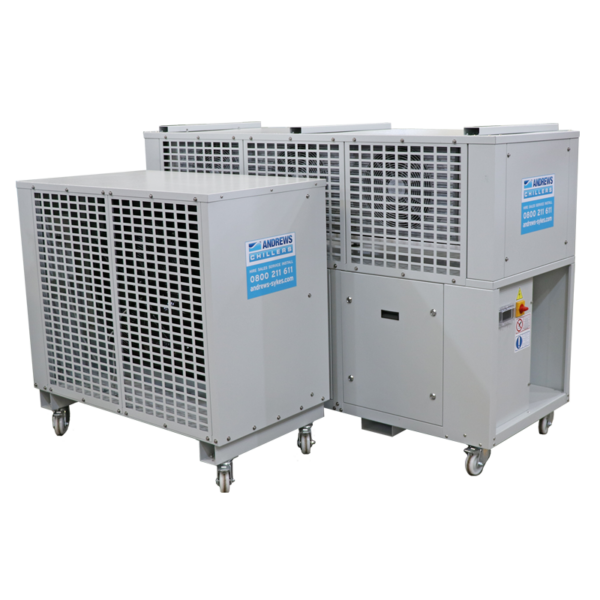

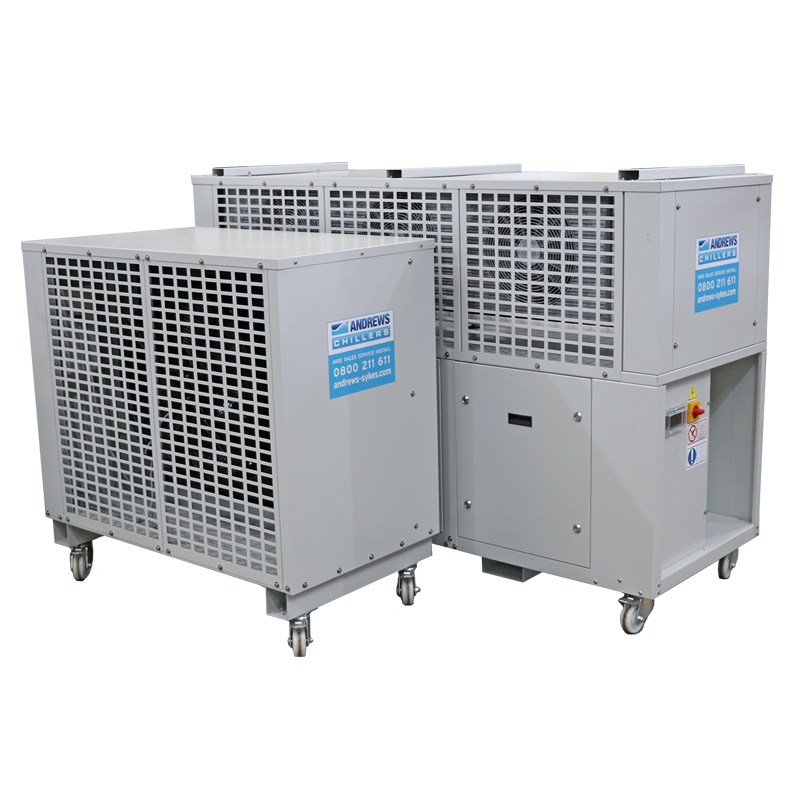

The Fast Chill 45 Series 2 is a reliable and technologically advanced chiller designed to reduce temperatures to as low as -10⁰C. The unit runs on the R454C gas refrigerant, which has a low global warming potential of 148 (GWP) and falls below the threshold value outlined in F-Gas regulations. The product delivers a nominal cooling capacity of 13.2kW and maximum airflows of up to 8,050m³/h. An automatic thermostat ensures precise temperature control, rendering the product perfect for instances where accurate monitoring is essential. The unit also incorporates a hot gas defrost system which pre-warms the water prior to draining, enabling an efficient heat exchange with any formed ice. The Fast Chill 45 Series 2 unit is designed for a broad spectrum of environments, including refrigerated body storage applications.
Feature
down to -10⁰C
suitable for noise-sensitive areas
ideal for emergencies
low running costs
environmentally friendly
designed for use anywhere
affording customer peace of mind
pre-charged glycol lines of up to 30m
| Nominal cooling duty | 13.2 kW |
|---|---|
| Air flow (max) | 8,050 m³/h |
| Plug type | BS4343 32 A 5 pin |
| Power supply | 415 V 3 ph N+E 50 Hz Run 24 A |
| Indoor noise level (max) | 58 dBA / 64 LWA @ 3 metres |
| Outdoor noise level (max) | 68 dBA / 70 LWA @ 1 metre |
| Indoor weight | 400 kg |
| Outdoor weight | 145 kg |
| Indoor dimensions (L x W x H) | 2,100 x 750 x 1,300 mm |
| Outdoor dimensions (L x W x H) | 1,250 x 700 x 1,215 mm |
| Control | Automatic thermostat |
| Average power consumption | 9.9 kW/h |
| Line length | 15 metres (max = 30 metres) |
| Operating temp range | -10⁰C to + 30⁰C |
| Generator size | 20 kVA |
20M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
10M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
15M CONECTING LINES (MAX 2 SETS)
CONDENSATE HOSE
FASTCHILL 45 OUTDOOR UNIT
Cold stores
Fresh meat cold rooms
Temporary body storage
Archive document storage
Refrigerated warehouse
Cellars
Standby for cold stores
Industrial processes
