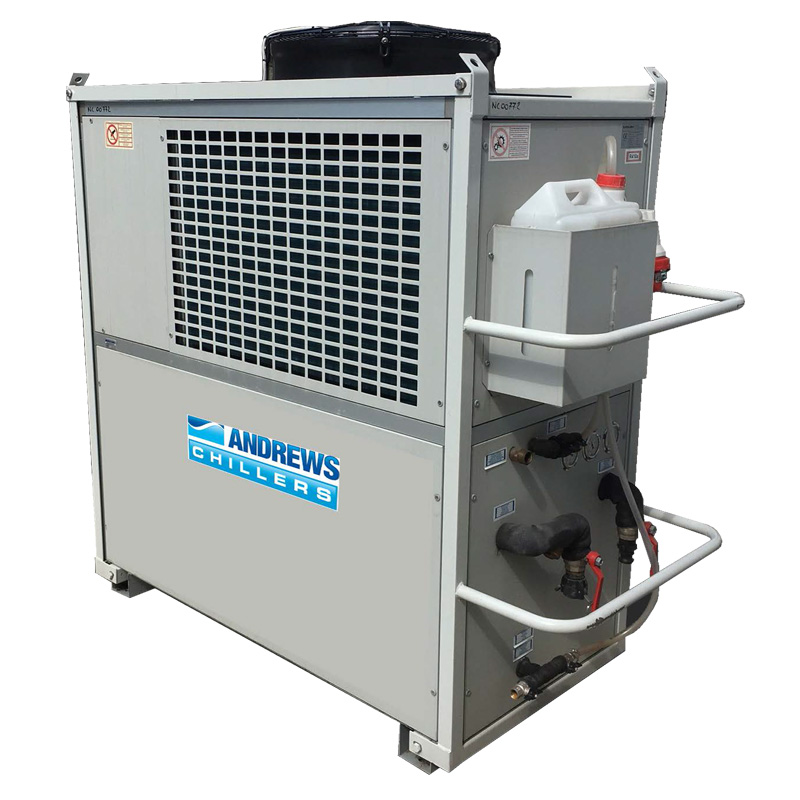

30kW HP Fluid Chiller

The 30kW HP is a compact and energy efficient fluid chiller suitable for a multitude of applications where both chilled and hot water are required. The unit’s heat pump technology (HP) produces a heat capacity of up to 33kW. This cooling unit can be connected to any fan coil in the Andrews range and is capable of reducing temperatures to as low as -5 ̊C. The 30kW HP’s adaptability renders it perfect for accommodating commercial and industrial requirements, making it an ideal choice for events and exhibitions, scheduled chiller maintenance and product storage.

Key Features

Feature

Compact unit

can be used in restricted areas

Low temperature capability

down to as low as -5 ̊C

Quiet operation

low noise level of 70 dBA @ 10 metres

Economical

reducing running costs

Fast connecting line couplings

for simple and fast installation

Provides both heating and cooling

for all year-round use

Fully portable

can be positioned more easily

Robust construction

will stand up to the rigours of industrial use

Product Specification

Additional information

Nominal cooling duty	30kW
Nominal heating duty (HP version)	33 kW
Power supply	415 V 3 ph N+E 50 Hz Run 25 A
Plug type	BS4343 32 A 5 pin
Noise level (max)	70 dBA @ 10 metres
Weight	635 kg
Dimensions (L x W x H)	1775 x 863 x 1675 mm
Control	Automatic programmer
Average power consumption	7.7 kW/h
Generator size	40 kVA
Water connection	32mm (1 1/4") Camlock
Nominal water flow	1.4 l/s

Downloads

Accessories

20M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
10M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
1.25 BORE HOSE PER METER
FAN COILS/ AHU’S
MANIFOLDS
SYSTEM CONNECTION FITTINGS
PLATE HEAT EXCHANGER

Environments

Product storage
Process cooling
Pharmaceuticals
Disaster recovery
Food and beverages
Marquees
Scheduled chiller maintenance
Events and exhibitions
Agriculture
Manufacturing and industry
