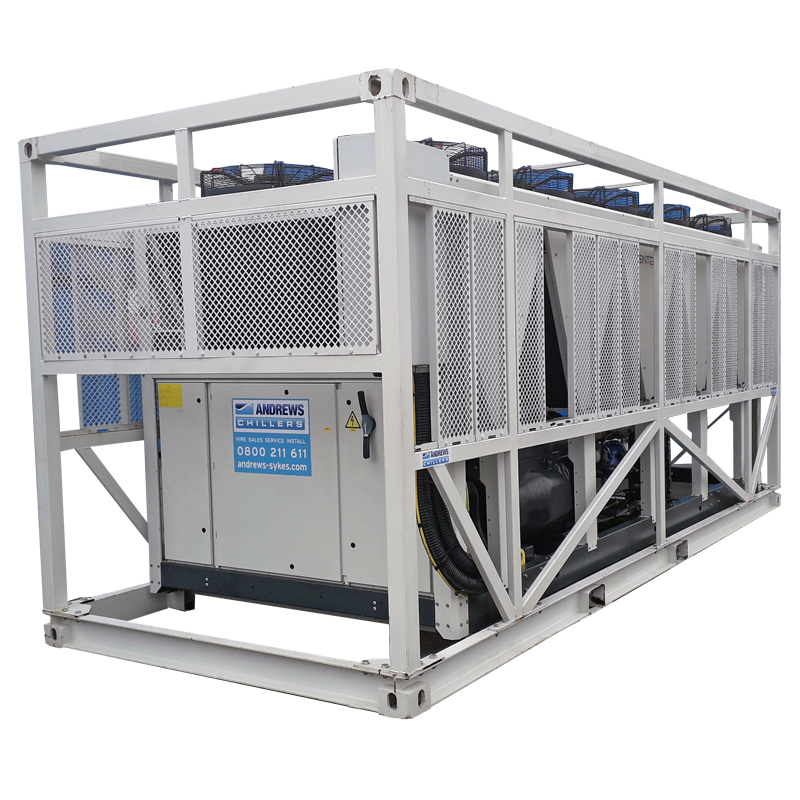

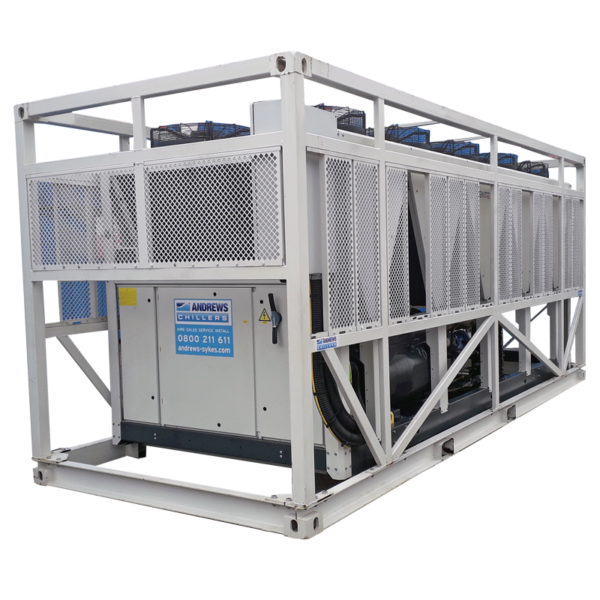

The 750kW Series 2 fluid chiller is our largest chiller unit and has been specifically designed to provide large volumes of instant cooling to temperature-critical applications. Offering enormous versatility by chilling water down to as low as low as -12ยฐC, this refrigerant unit is fully portable and mounted on robust base plates to aid manoeuvrability. Once connected to an existing cooling system, this cold air unit can operate unattended and is ideal for providing extreme low-level cooling to large volume spaces, including Ice rinks, hospitals and temporary body storage facilities.
Feature
will stand up to the rigours of industrial use
down to as low as -12 ฬC
reducing running costs
low noise level of 61 dBA @ 10 metres
for simple and fast installation
can be positioned more easily
facilitates transport and deployment
energy efficient
| Nominal cooling duty | 750 kW |
|---|---|
| Power supply | 415 V 3 ph +E 50 Hz Run 570 A plus pump set |
| Plug type | Hard wired ( 4 x 240 mm2 ) |
| Noise level (max) | 61 dBA @ 10 metres / 87 LWA @ 10 metres |
| Weight | 7,350 kg |
| Dimensions (L x W x H) | 6,400 x 2,450x 2,780 mm |
| Control | Automatic programmer |
| Average power consumption | 177 kW/h |
| Generator size | 550 kVA |
| Water connection | 100mm (4") bauer / DN100 PN16 Flange |
| Nominal water flow | 34 l/s |
| Low temperature | -120C |
QTY 4 X 240MM POWER CABLE SINGLE CORE 415V (PER M)
EXTERNAL PUMP SET (UP TO 44 LT/SEC)
EXTENSION LEAD 5 PIN 63 AMP 415V FOR EXTERNAL PUMP
6M X 100MM HOSE BAUER OR DN100 PN16 FLANGE
FAN COILS/ AHU’S
MANIFOLDS
SYSTEM CONNECTION FITTINGS
PLATE HEAT EXCHANGER
BUFFER TANK
Ice rinks
Petrochemicals and refineries
Body storage
Hotels and resorts
Emergency chillers
Computer and server rooms
District cooling
Pharmaceuticals
Food and beverages
Hospitals and healthcare
