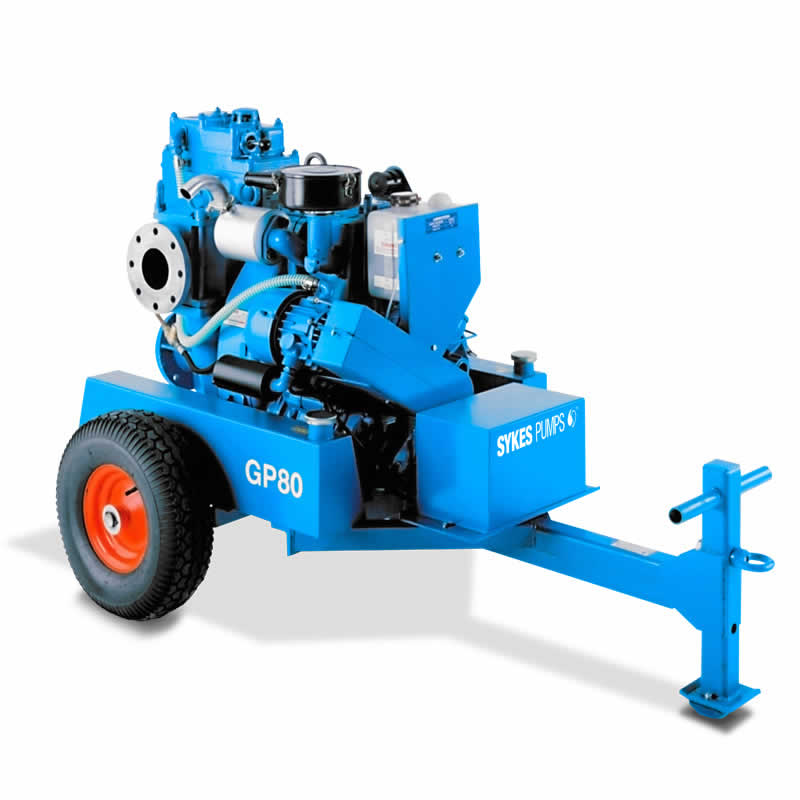

The GP 80 is typically a contractor’s general purpose pump capable of delivering flows up to 34 litres per second and a maximum head of 24 metres. Used wherever there’s a need for reliable automatic self-priming, the GP 80 incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 80 is powered by a 6.7kW Lister engine and is available on a robust 2 wheeled site chassis.
Feature
for continuous use
for robust applications
for simple redeployment
for swift functionality
for greater fuel efficiency
| Performance | Max head:- 24 m [br] Max flow:- 34 l/s [br] Max solid:- 40 mm |
|---|---|
| Weight | 455 kg with fuel [br] 425 kg without fuel |
| Dimensions (L x W x H) | 1700 x 1190 x 1093 mm |
| Noise level | @ 1m = 95-98 dBA [br] @7m = 78 – 82 dBA |
| Fuel capacity | 35 litres. Max 24 hours with cleaning and flushing facilities |
| Pipe Connections | Suction:- 4" table D [br] Discharge:- 4" table D [br] Bauer couplings option:- 3" |
| Fuel Consumption | Full load @ 1800 rpm:- 1.9 litres/hour |
| Energy Efficient duty point | Fuel Consumption @ 1500 rpm:- duty point:- 0.61 litres/hour |
3″ SPLIT INTAKE
3″ 20FT W/A SUCTION HOSE BAUER
3″ 20FT POLYTUBE
3″ X 6M HELIFLEX PVC BAUER HOSE
3″ LAYFLAT HOSE PER METRE
3″ BLUE LAYFLAT X 25M CW BAUERS
3″ 90* BEND
3″ GATEVALVE
3″ NON RETURN VALVE
BUNDED FUEL TANK 1000 LITRE
RETAIL GAS OIL
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
