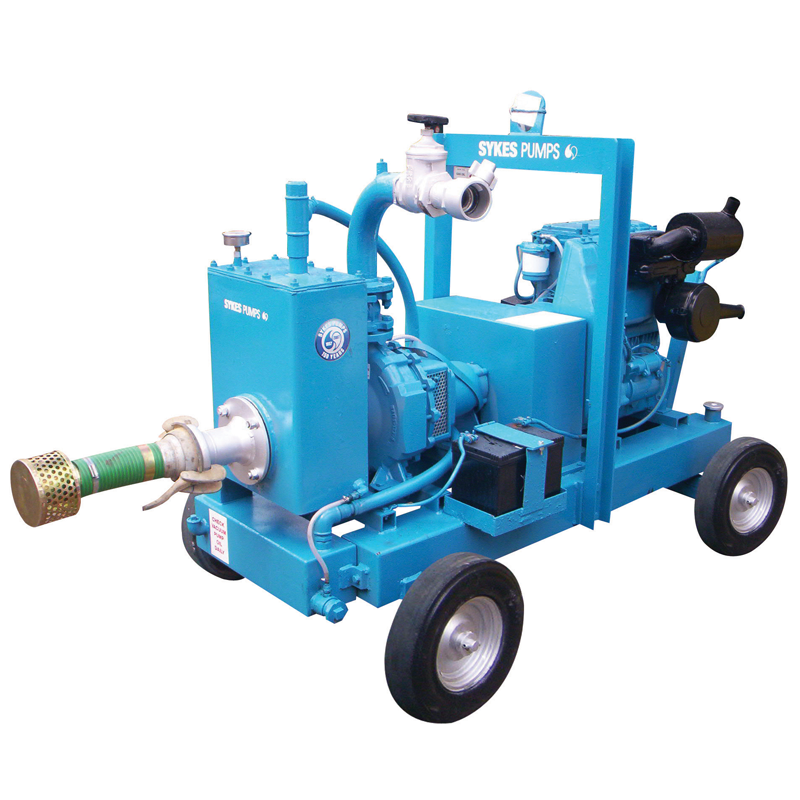

HP80

The HP80 is a high performance pump used for applications where standard pump pressures are inadequate. This high pressure pump is suitable for a range of applications from jetting to dust suppression and temporary fire pump duties. The HP80 is one of our smallest high performance pumps and among the most cost-efficient pumps of its kind. Giving a maximum head of 98 metres and flows of up to 21 litres per second, this pump features the Sykes Univac vacuum priming system for rapid automatic priming and re-priming from dry.

Key Features

Feature

Hours of

unattended operations use

Hard-wearing parts

aplications

Automatic priming and re-priming

for maximum efficiency

Compact and manoeuvrable

for simple redeployment

Super silent

option available

Electric start

for swift functionality

Economical operation

for greater fuel efficiency

Available on a 4 wheeled

site chassis for swift delivery

Product Specification

Additional information

Performance	Max head:- 98 m [br] Max flow:- 21 l/s
Weight	856kg without fuel
Dimensions (L x W x H)	1800 x 1070 x 1460
Noise level	@ 1m = 94 – 98 dBA [br] @ 7m = 77 – 82 dBA
Fuel capacity	90 litres
Pipe Connections	Suction:- 4" Table D or 3" Bauer [br] Discharge:- 21 ⁄2" Instantaneous adapter or 3" BSP
Fuel Consumption	Full load @ 2800 rpm:- 6.27 litres/hour
Energy Efficient duty point	Fuel Consumption @ 2500 rpm:- 4.08 litres/hour
