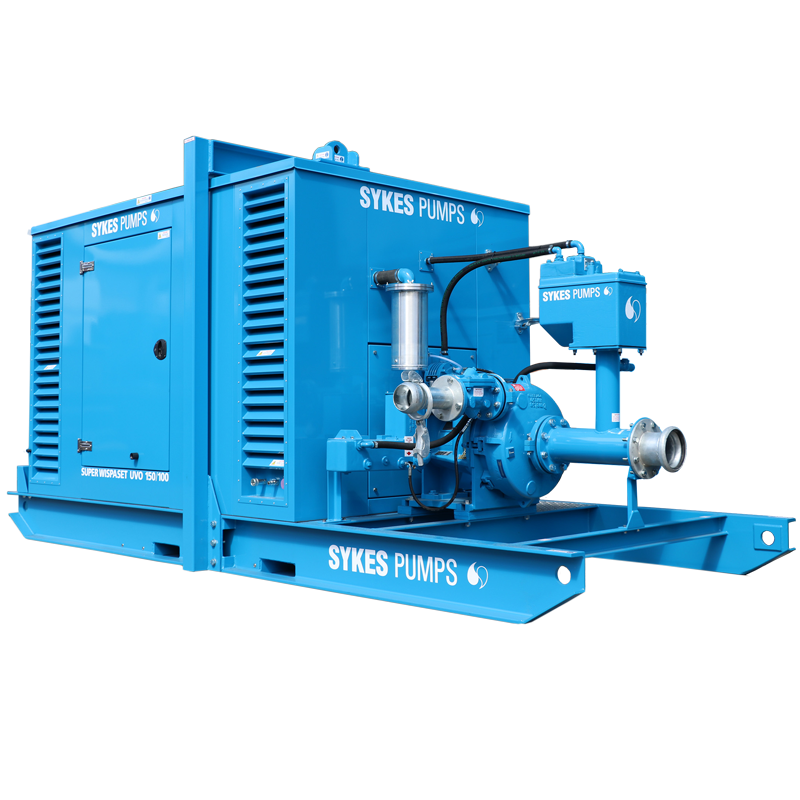

Super Wispaset UVO 150/100 pump

The Sykes Super Wispaset UVO 150/100 is a super silenced high-performance pump specifically designed for use on arduous, high head noise-sensitive applications. The pump runs on an innovative Tier 4-compliant Volvo TAD870VE engine which dramatically reduces emissions whilst meeting the latest European regulations. This market-leading product is contained within a sound-reducing canopy and has a maximum noise level of 70dBA at 7 metres. An average fuel consumption of just 16.8 litres an hour renders the Super Wispaset UVO 150/100 approximately 10% more efficient than comparable pumps on the market. The unit offers maximum heads of 93 metres and a maximum flow of up to 120 litres per second, while a built-in telemetry system provides detailed statistics about the pump’s performance.

Key Features

Feature

Volvo TAD870VE engine for optimum performance

Low noise levels for use in built-up areas

Low emissions and compliant with latest European legislation

Telemetry system for external performance monitoring and location tracking

Remote start/stop for full control on or off site

High head capable of discharge heads of over 90 metres

Corrosion and abrasion resistant for challenging outdoor locations

Sykes auto self-priming enabling automatic priming from dry for ease of use

Product Specification

Additional information

Performance	Max head:- 93 m [br] Max flow:- 120 l/s [br] Max solid:- 38 mm
Weight	4,100 kg
Dimensions (L x W x H)	4750 x 2120 x 2480
Noise level	@7m= 70 dBA
Fuel capacity	Separate bunded tanks available
Pipe Connections	Suction:- 6" Table [br] Discharge:- 4" NP16 [br] Discharge:- 4" NP16 Option Bauer Couplings
Fuel Consumption	Full load @ 1800 rpm: 28 litres/hour
Energy Efficient duty point	Fuel Consumption @1500 rpm: 16.8 litres/hour

Downloads

Accessories

8″ INTAKE
8″ 3M W/A BAUER HOSE
8″ X 6M POLYTUBE BAUER DELIVERY
8″ 20FT STEEL PIPE
8″ 45* BAUER BEND
8″ 90* BEND
8″ GATEVALVE
8″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
RETAIL GAS OIL

Environments

Clean and dirty water
Sludge
Utilities
Slurry
Environmental
Manufacturing and industry
Quarries and mines
Civil engineering
Docks, ports & harbours
Power stations
Refineries
Tunnelling
