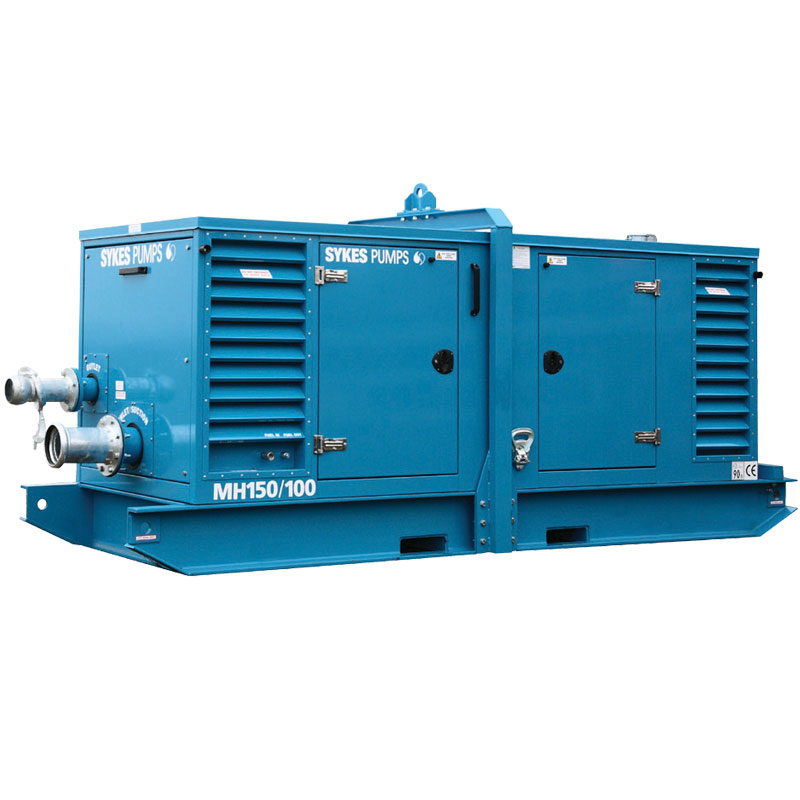

MH 150/100 Super Wispaset medium head

The MH 150/100 Super Wispaset is designed for all general purpose medium head applications but most commonly used in mines and quarries. A high efficiency impeller ensures excellent pump performance delivering a maximum head of 105 metres, a maximum flow rate of 90 litres per second and 20mm solids handling. The MH 150/100 pump requires an external fuel tank for operation, while its 60 cfm vacuum pump delivers rapid priming and re-priming capabilities to maximise efficiency.

Key Features

Feature

Hard wearing cast iron construction

Hours

of unattended operation

Corrosion resistant

Single point filter

Stainless steel impeller

Skid mounted

Easy maintenance

Automatic priming and re-priming

Product Specification

Additional information

Performance	Max head:- 105 m [br] Max flow:- 90 l/s [br] Max solid:- 20 mm
Weight	2905 kg
Dimensions (L x W x H)	4090 x 1370 x 1685 mm
Noise level	@7m= 70 dBA
Pipe Connections	Suction:- 6" Table D [br] Discharge:- 4" NP16 [br] Bauer couplings option
Fuel Consumption	Full load @ 1800 rpm:- 26.5 litres/hour
Energy Efficient duty point	Fuel Consumption @ 1800 rpm:- 21.9 litres/hour

Downloads

Accessories

4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6MTR STEEL BAUER PIPE
4″ 45* FLANGED NP16
4″ 90*PLANGED NP16 BEND
4″ GATEVALVE
4″ NON RETURN VALVE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Clean and dirty water
Open cast mines
Temporary fire-main
Construction
Nuisance water transfer
Wastewater
Quarries & mines
Environmental
