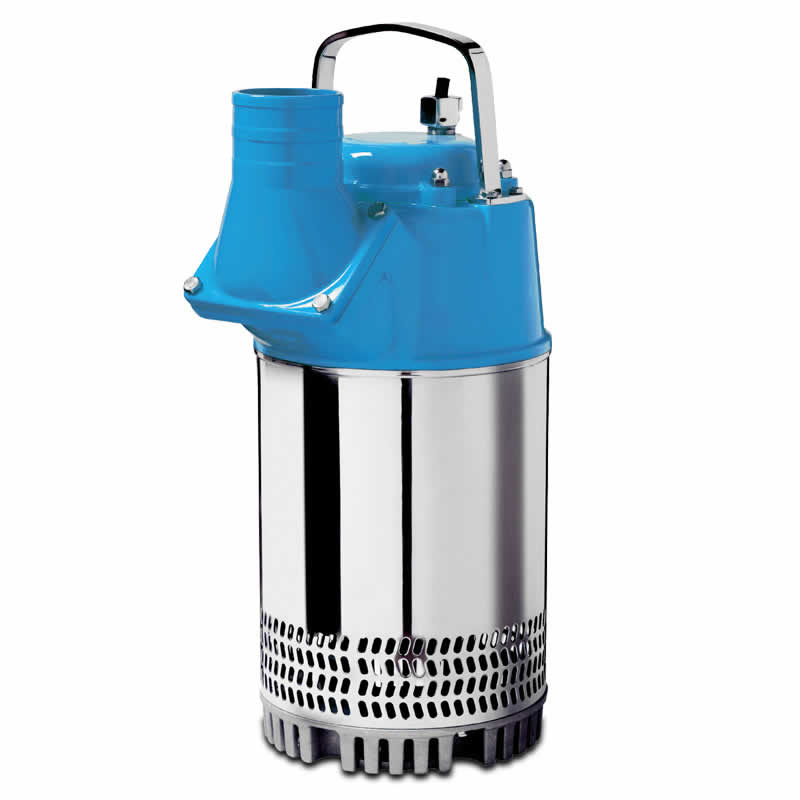

P 3001 Series electric submersible drainer pump

Sykes’ P 3001 Series submersible drainer pumps are designed for use on general dewatering applications. Ideal for moving nuisance water, they are commonly deployed in a broad range of environments including construction, utilities, mines and quarries, shipyards, docks and industrial sites to ensure projects remain on schedule. These 4/6” pumps are available in three versions with flow rates up to 65 L/sec and a maximum Head of 70 metres. P 3001 units are very robust and are compatible for use with a 3 phase 415V power supply. Low maintenance features enable trouble free uninterrupted use over long periods.

Key Features

Feature

Stainless steel components

for high abrasive resistance

Highly reliable

and suitable for long-term use

Options

with high flow and high head versions available

No vibration

allows smooth running and constant flows

Easily portable

so can be positioned quickly

Built in motor protection

reduces the risk of damage

Simple installation

provides fast and easy operation

Compact

so fits small spaces

Product Specification

Additional information

Model	P3001 N / P3001 H / P3001 V
Motor type	415V (3-Phase) 50Hz / 415V (3-Phase) 50Hz / 415V (3-Phase) 50Hz
Motor rating	9.4 kW
Max power input	10.8 kW
Running current	18A
Discharge spigot	4" or 6" Bauer
Dimensions (H x W)	771 x 364mm
Weight (excl cable)	70kg

Downloads

Accessories

P3000/SP80 LEVEL CONTROL
VARIABLE PANEL 1KW TO 15KW
3″ 20FT W/A SUCTION HOSE BAUER
3″ 20FT POLYTUBE
3″ X 6M HELIFLEX PVC BAUER HOSE
3″ LAYFLAT HOSE PER METRE
3″ BLUE LAYFLAT X 25M CW BAUERS
3″ 90* BEND
3″ GATEVALVE
3″ NON RETURN VALVE
4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6M HELIFLEX PVC BAUER
4″ LAYFLAT HOSE PER METRE
4″ BLUE LAYFLAT X 25M CW BAUERS
4″ X 6MTR STEEL BAUER PIPE
4″ 45* BAUER BEND
4″ 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES

Environments

Construction
Emergency site drainage
Docks & Shipyards
Clean and dirty water pumping
Tunneling
Industrial
General dewatering
Mines & Quarries
Utilities
Power Generation
