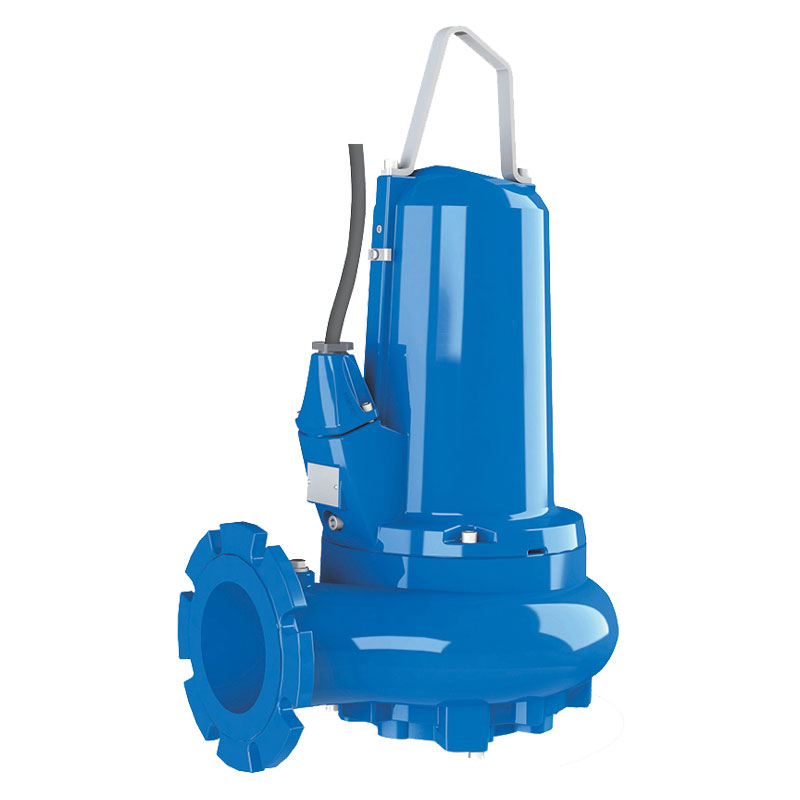

The AFPK1045 is a cast-iron electric submersible wastewater pump available in two versions and has been designed for use in a broad range of applications. With a maximum flow of 64 litres per second, the 18.5kW version delivers a head of 36 metres while the 11kW version delivers heads of up to 27 metres. The pumps’ impressive solids handling capabilities are ideal for use across most market sectors including wastewater transportation. The AFPK1045 is compatible with guide rails and offers a reliable solution in instances where existing pumping arrangements have failed unexpectedly.
Feature
blockage-free operation
for reduce energy consumption
minimal service and maintenance
running and constant flows
so can be positioned quickly
the risk of damage
so fits small spaces
for instantaneous set-up
| Model | AFPK1045AFPK1045 |
|---|---|
| Motor type | 415V (3-Phase) 50Hz415V (3-Phase) 50Hz |
| Motor rating | 11kW18.5kW |
| Running current | 22.1A35.6A |
| Running Speed | 1450 rpm1450 rpm |
| Discharge port | 100mm100mm |
| Suction inlet port | 150mm150mm |
| Maximum Solids | 100mm100mm |
| EX Rated | NoNo |
| Cooling jacket | YesYes |
| Guided rail option | 1145 x 550mm1145 x 550mm |
| Weight | 330kg [br] 340kg |
| Transportable option | 1295 x 940mm1295 x 940mm |
VARIABLE PANEL 1KW TO 15KW – 11KW Pump
VARIABLE SOFT START PANEL 18KW TO 56KW – 18.5KW Pump
4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6M HELIFLEX PVC BAUER
4″ X 6MTR STEEL BAUER PIPE
4″ 45* BAUER BEND
4″ 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE
Building and construction
Sewage pumping
Bypass and over-pumping
Wastewater treatment
Industrial processes
Agriculture
Utility industries
Commercial premises
Flood restoration
General maintenance
