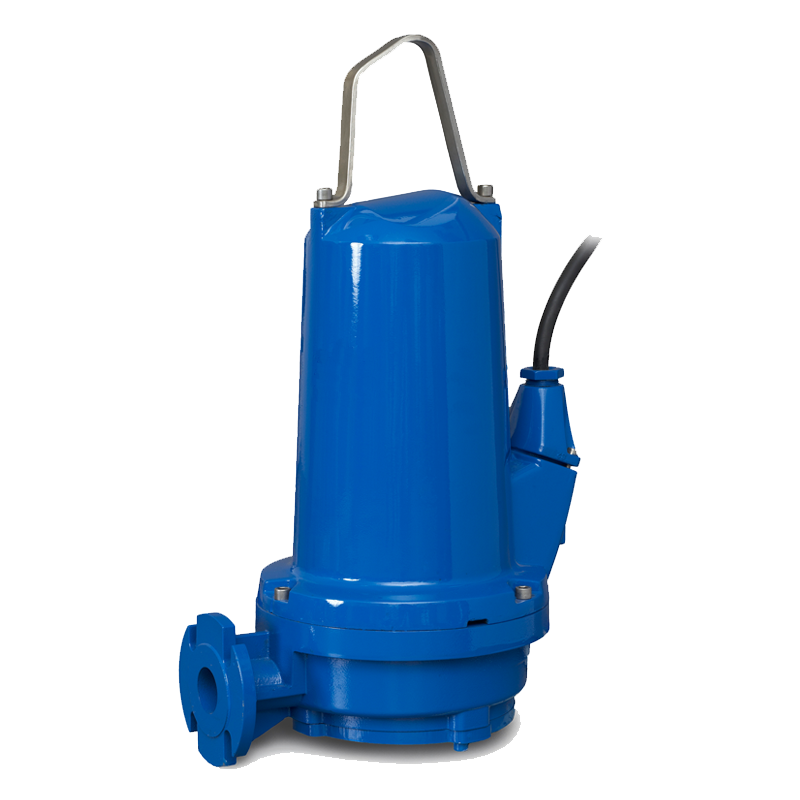

Piranha M70

Piranha sewage macerator pumps come complete with a shredding action that provides reliable and economical discharge of effluent under pressure. These robust grinder pumps are capable of achieving heads up to 50 metres and can handle flows up to 6 litres per second. Since material passing through the pump is macerated, existing pipes as small as 2” can be used to discharge the waste. A premium efficiency motor (IE3) with a rating of 7kW is fitted to reduce energy usage and minimise running costs.

Key Features

Feature

Macerator Impeller provides blockage-free

operation with Shredding of materials

Double mechanical seals

for maximum abrasive resistance

Simple design allows minimal service

and maintenance

No vibration allows smooth running

and constant flows

Easily portable

so can be positioned quickly

Motor protection reduces

the risk of damage

Compact

so fits small spaces

Simple installation

for instantaneous set-up

Product Specification

Additional information

Model	M70
Motor type	415V
Motor rating	7kW
Max power input	7.7kW
Running current	13.5A
Discharge spigot	2"
Maximum solids (mm)	Macerator
EX Rated	Yes/No
Cooling jacket	N/A
Guide rail option Height	653mm
Guide rail option Maximum Width	600mm
Guide rail option Minimum Width	425mm
Free standing Height	653mm
Free standing Maximum Width	600mm
Free standing Minimum Width	425mm
Weight	80kg

Downloads

Accessories

VARIABLE PANEL 1KW TO 15KW
2″ 20FT W/A SUCTION HOSE BAUER
2″ X 6M HELIFLEX PVC BAUER HOSE
2″ 60* BEND
2″ GATEVALVE
2″ NON RETURN VALVE

Environments

Building and construction
Emergency
Municipal treatment sites
Wastewater pumping
Sewage removal
Manufacturing and industry
Industrial processes
Property maintenance
Food preparation processes
Agriculture
Utility industries
