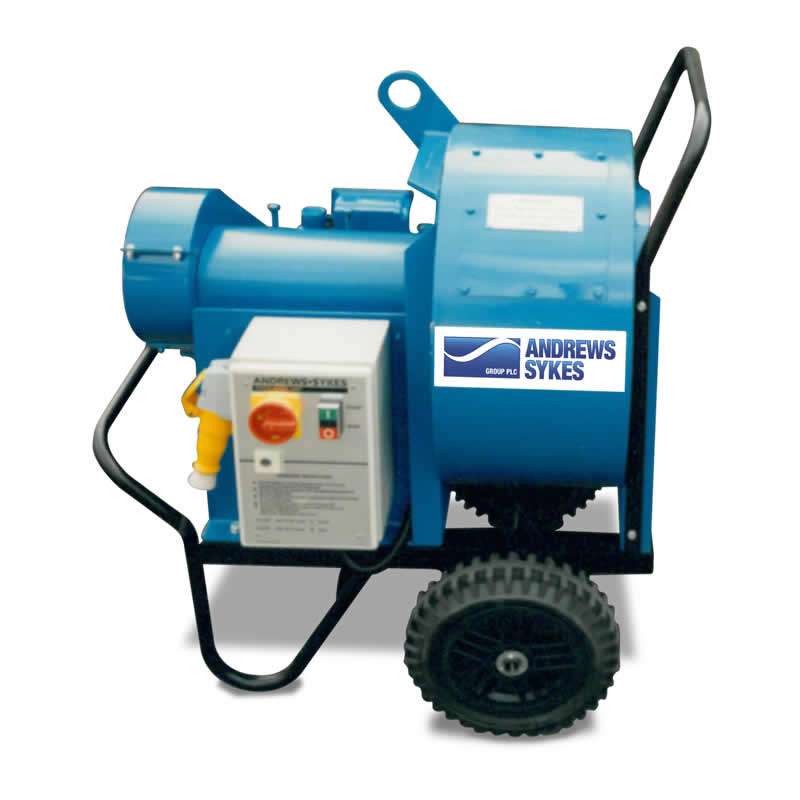

FV300 ventilation extraction fan

The FV300 is a rugged, high-powered ventilation fan designed to extract dangerous fumes, dust particles and vapours from enclosed areas. Used to provide confined spaces with fresh air, the wheel-mounted FV300 fan has an average power consumption of just 2kW/h and a maximum air flow of up to 4,930m³ per hour. These specifications render the product an ideal solution for a wide range of environments including tank cleaning, tunnel construction and the removal of welding fumes.

Key Features

Feature

Easy installation

plug in and switch on

Quiet operation

for deployment in noise-sensitive areas

Low energy consumption

only 2 kW/h

Economical performance

ensuring low running costs

Safe and easy to use

allowing simplified operation

Standard power supply

suitable for all types of applications

Reliable product

affording customer peace of mind

Fully portable

wheel mounted and easy to move

Product Specification

Additional information

Air flow (max)	4930 m3/h
Power supply	110 V 1 ph 50 Hz Run 17 A
Plug type	BS4343 32 A 110 V
Generator size	7 kVA min
Transformer size	5 kW min
Duct length (max)	40 metres
Duct size	300 mm
Noise level (max, with duct)	86.9 dBA @ 1 metre
Weight	130 kg
Dimensions (L x W x H)	920 x 720 x 1045 mm
Control	Manual
Average power consumption	2 kW/h

Downloads

Accessories

RCD
10M x 110V EXTENSION LEAD 2.5MM DIA
20M x 110V EXTENSION LEAD 6MM DIA
300MM X 8M HD VENT DUCTING WITH CLAMP
FILTER BAG

Environments

Removal of welding fumes
Demolition
Tank cleaning
Agriculture
Sewer maintenance
Tunnel construction
Construction
Paint work
Confined space working
Elimination of smoke and dust
