Immediate Despatch

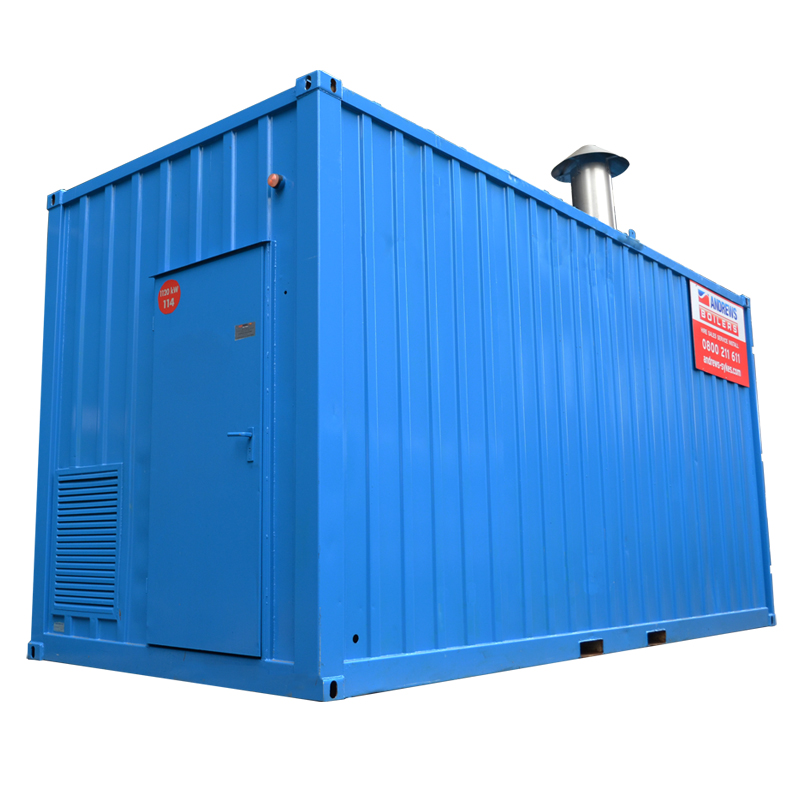

1,250kW packaged boiler

The 1,250kW site boiler is one of our largest units and offers a quick and easy hot water solution to a range of applications including district heating systems, construction sites, healthcare facilities and process plants. The unit can be sited and connected to an existing arrangement quickly to restore hot water in any environment. Incorporating a 2-stage burner to conserve fuel and reduce emissions, this particular model can be fully functional within minutes of arriving on site and is fuelled by gas oil. Delivery via a Hiab vehicle negates the need for a crane on site while the unit’s quiet operation renders it perfect for deployment in noise-sensitive areas.

Key Features

Feature

Instant heating

and hot water for a variety of applications

Suitable for

supplementary use or complete replacement

Runs on a

3-phase 415 V power supply for simple set-up

Seamless connection

to existing systems for quick installation

Uninterrupted boiler service

during planned maintenance

High maximum working temperature

for multitude of environments

Quiet operation for

discreet deployment

Capacities of

up to 1.25mW achievable

Product Specification

Additional information

Nominal heating duty	1,250 kW
Dimensions (L x W x H)	6058 x 2438 x 2591 mm (without flue)
Weight	7,500 kg
Noise level (max)	48 dBA @ 10 metres
Power supply	415 V 3 ph N+E 50 Hz Run 10 A
Plug type	B54343 5 pin 32 amp
Control	Automatic thermostat
Average power consumption	5.4 kW/h
Fuel type	Gas Oil
Fuel consumption (max)	100 I/h
LPHW connections (flow / return)	100 mm DN100 PN16 flange

Downloads

Accessories

10M x 415V 32AMP EXTENSION LEAD 6MM DIA
1000L BUNDED FUEL TANK
2000L BUNDED FUEL TANK
2800L BUNDED FUEL TANK
3000L BUNDED FUEL TANK
5M HP FUEL LINE
GAS OIL
NATURAL GAS OPTION
STORTZ HOSE 75MM LPHW
STORTZ HOSE 50MM DHW
STORTZ HOSE 25MM DHW RECIRCULATION
STORTZ CONNECTOR 75MM ALLOY (LPHW)
STORTZ CONNECTOR 50MM BRASS (DHW)
STORTZ CONNECTOR 25MM BRASS (DHW) RECIRC
HEAT EXCHANGER
PRESSURISATION UNIT 230V (LPHW)
FAN COIL / AHU

Environments

District heating systems
Universities and schools
Hospitals and care homes
Process plants
Construction sites
Sports halls and leisure centres
Factories and warehouses
Hotels and holiday centres
Military establishments
Underground sports pitch heating
